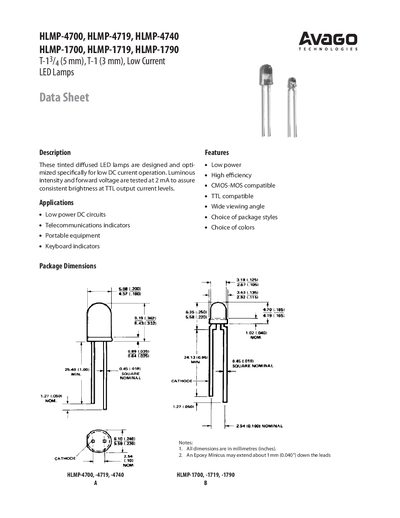

These tinted diffused LED lamps are designed and optimized specifically for low DC current operation.
The HLMP series (4700, 4719, 4740, 1700, 1719, 1790) are low‑power, tinted diffused LED lamps designed for operation at 2 mA. They offer high efficiency, wide viewing angles, and are compatible with CMOS‑MOS and TTL circuits, making them suitable for telecommunications, portable equipment, and keyboard indicators.
The document provides package dimensions, mechanical options, electrical and optical characteristics, absolute maximum ratings, and detailed handling and soldering precautions. It also includes packaging label information and references to Avago application notes for further guidance.
| Power Dissipation (Red) | 14 mW |
|---|---|
| Operating Temperature Range (Red/Yellow) | -40 °C to 100 °C |
The recommended maximum peak temperature for wave soldering is 250 °C.
