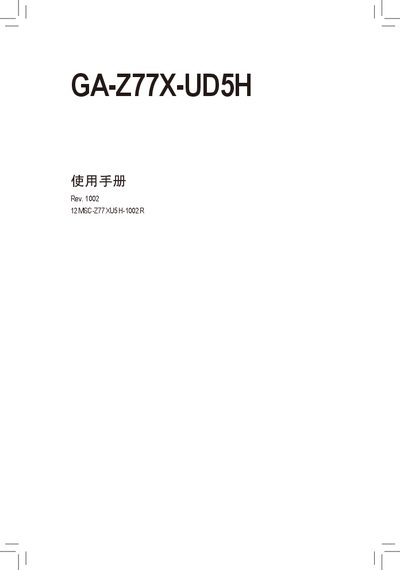

GA-Z77X-UD5H motherboard user manual, introduces the hardware installation, BIOS settings and driver installation of the motherboard
This manual explains how to install and configure the GA-Z77X-UD5H motherboard. It covers hardware installation, BIOS settings, driver installation, and detailed descriptions of the board's unique features such as Xpress Recovery2, Q-Flash, and Intel Rapid Start.
The document also includes product specifications, troubleshooting tips, and appendices with SATA configuration, audio settings, and service information to help users get the most out of their system. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel Z77 |
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported memory speed | DDR3 1600/1333/1066 MHz |
| Audio codec | Realtek ALC898 |
| Network interfaces | Atheros GbE and Intel GbE (10/100/1000 Mbit) |
| PCI Express slots | 1 x16 (x16), 1 x16 (x8), 1 x16 (x4), 3 x1, 1 PCI |
It has four DDR3 DIMM slots that support up to 32 GB of memory.
The board supports processors with an LGA1155 socket.
It includes an Atheros GbE chip and an Intel GbE chip, both supporting 10/100/1000 Mbit.
