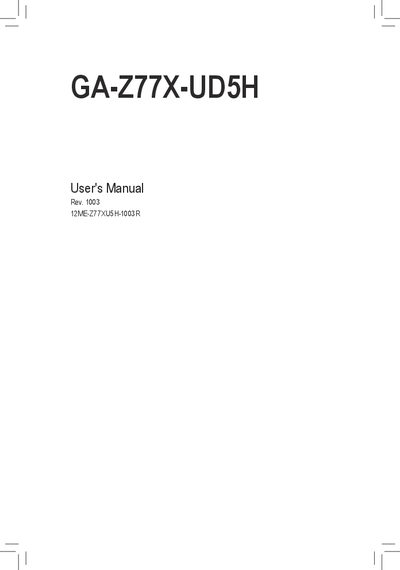

GA-Z77X-UD5H User Manual is the official user manual for the GA-Z77X-UD5H motherboard from Gigabyte Technology, covering hardware installation, BIOS configuration settings, driver installation and other content.
This manual covers all aspects of the GA-Z77X-UD5H motherboard, including hardware installation, BIOS configuration, driver setup, and unique features such as Intel Rapid Start and Xpress Recovery. It also contains an appendix with detailed specifications, regulatory statements, and contact information for technical support.
The document is organized into sections on box contents, hardware installation, BIOS setup, driver installation, special features, and an appendix with troubleshooting FAQs and debug LED codes. It provides step‑by‑step guidance for assembling the system, configuring memory, storage, and expansion cards, and updating the BIOS.
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 1600/1333/1066 MHz |
| SATA Ports | 2 SATA 6Gb/s |
| USB Ports | 2 USB 3.0/2.0 |
| PCI Express Slots | 2 x8, 1 x16 |
The box contains the GA-Z77X-UD5H motherboard, driver disk, user manual, quick installation guide, SATA cables, a front panel with USB ports, an SLI bridge connector, and a Wi‑Fi module with antennas.
You can update the BIOS using the Q‑Flash utility or the @BIOS utility as described in the BIOS Update Utilities section.
Technical support contact information is provided in the manual’s Contact Us section, listing Gigabyte offices worldwide.
