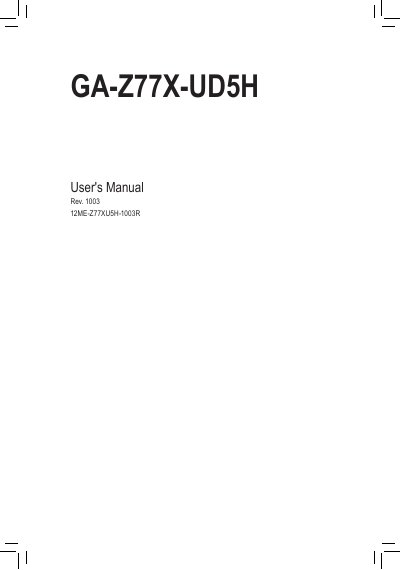

Gigabyte GA-Z77X-UD5H Motherboard User Manual

This document is the user manual for GA-Z77X-UD5H motherboard.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 128
File format: PDF
File size: 35.6 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-Z77X-UD5H
MD5 checksum: 2033F60037B41E448E85AF494A3B2AFE
PDF: Gigabyte GA-Z77X-UD5H Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the Gigabyte GA-Z77X-UD5H motherboard, including hardware installation, BIOS configuration, driver setup, and unique features such as Xpress Recovery and Intel Rapid Start Technology.

Key sections include hardware installation precautions, detailed product specifications, BIOS menus, driver installation steps, and an extensive appendix with troubleshooting, LED codes, and regulatory information.

What's inside

Hardware Installation
BIOS Setup
Drivers Installation
Unique Features
Appendix
Box Contents
Motherboard Layout
Product Specifications

Specifications

CPU Support	Intel Core i7/i5/i3, Pentium, Celeron (LGA1155)
Memory Slots	4 DDR3 DIMM sockets, up to 32 GB total
Supported Memory Types	DDR3 1600/1333/1066 MHz, non‑ECC, XMP
Audio Codec	Realtek ALC898
LAN Controllers	Atheros GbE LAN (10/100/1000 Mbit) and Intel GbE LAN (10/100/1000 Mbit)
Multi‑Graphics Support	AMD CrossFireX / NVIDIA SLI

Frequently asked questions

How many memory slots does the GA‑Z77X‑UD5H have and what is the maximum supported memory?

The board provides four DDR3 DIMM sockets that together support up to 32 GB of system memory.

Which LAN chips are integrated on the motherboard?

It includes an Atheros Gigabit Ethernet controller and an Intel Gigabit Ethernet controller, each supporting 10/100/1000 Mbit speeds.
