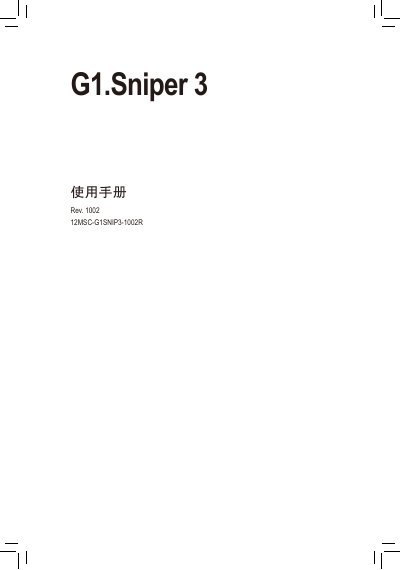

This document is the user manual for G1.Sniper 3 motherboard, which provides installation and setup instructions, as well as information about the features and characteristics of the product.
This manual provides step‑by‑step hardware installation instructions, including CPU, memory, expansion cards and cable routing. It also details BIOS configuration, power‑management settings and driver installation procedures.
Additional sections describe the board’s unique features such as Xpress Recovery2, Q‑Flash BIOS update, EasyTune, and various networking and audio capabilities, followed by appendices with troubleshooting, warranty information and service contacts. This manual is written in Chinese.
| CPU Socket | LGA1155, supports Intel Core i7/i5/i3, Pentium, Celeron |
|---|---|
| Chipset | Intel Z77 |
| Memory Slots | 4 x 1.5 V DDR3 DIMM, up to 32 GB |
| Memory Speed | DDR3 1600/1333/1066 MHz |
| Video Outputs | 1 HDMI (up to 1920×1200), 1 DVI‑D, 1 D‑Sub, 1 DisplayPort |
| Audio Chip | Creative CA0132 |
| Network Interfaces | Qualcomm Atheros Killer E2201 (10/100/1000 Mbit) and Intel GbE LAN (10/100/1000 Mbit) |
| Expansion Slots | 2 PCI Express x16 (x16 mode), 2 PCI Express x16 (x8 mode), 2 PCI Express x1, 1 PCI |
It uses an LGA1155 socket that supports Intel Core i7, i5, i3, Pentium and Celeron processors.
The board has four DDR3 DIMM slots and can support up to 32 GB of memory.
The motherboard integrates a Creative CA0132 audio chip.
It includes a Qualcomm Atheros Killer E2201 Gigabit Ethernet controller and an Intel GbE LAN controller.
