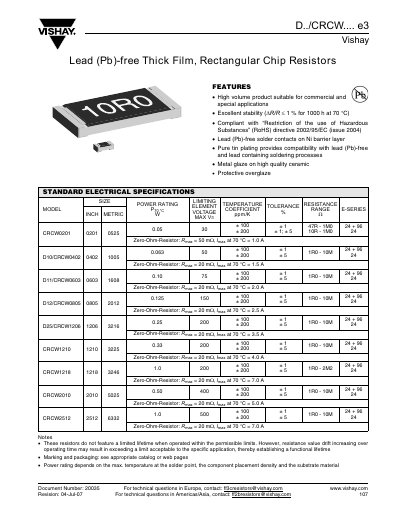

This document is about Vishay Lead (Pb)-free Thick Film, Rectangular Chip Resistors. Products have high volume, excellent stability, comply with RoHS standards, lead-free solder contacts, pure tin plating, metal glaze and protective glaze.
This handbook describes Vishay's CRCW series of lead‑free thick‑film rectangular chip resistors. It lists the product’s features, electrical specifications, mechanical dimensions, packaging options, and the test procedures used to qualify the components.
Key information includes rated power dissipation, limiting element voltage, temperature coefficient, tolerance, and reliability data. The document also contains dimensional drawings, reel and bulk packaging details, and a legal disclaimer regarding usage and liability.
| Limiting Element Voltage (CRCW0201) | 30 V |
|---|---|
| Temperature Coefficient (CRCW0201) | ±200 ppm/K |
Yes, the CRCW resistors are lead‑free and comply with the RoHS directive 2002/95/EC.
They are available in reels, bulk tape, or paper blister packs; for example, CRCW0201 reels are 8 mm wide with 10 000 pieces per reel.
