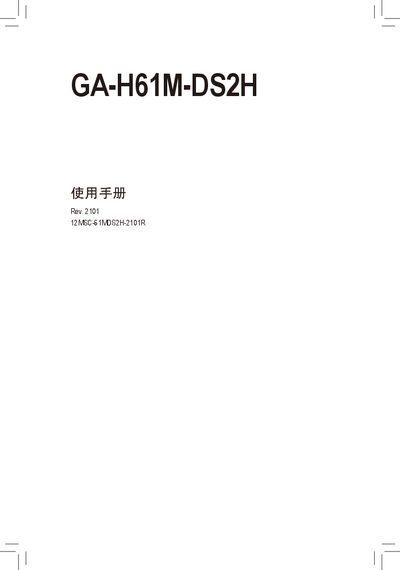

GA-H61M-DS2H User Manual is a user manual for Gigabyte GA-H61M-DS2H motherboard, which introduces the hardware installation, BIOS program settings and driver installation.
This manual guides users through hardware installation, BIOS configuration, and driver setup for the Gigabyte GA-H61M-DS2H motherboard. It includes safety precautions, step‑by‑step instructions, and diagrams of the board layout.
The document also lists detailed product specifications such as supported CPUs, memory types, expansion slots, and connectivity options, and provides warranty and service information for Gigabyte customers in China and Taiwan. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported Memory Types | DDR3 1333/1066/800 MHz, non‑ECC, dual‑channel, XMP |
| PCI Express Slots | 1 × PCIe x16 (PCIe 3.0), 3 × PCIe x1 (PCIe 2.0) |
| SATA Ports | 4 × SATA 3 Gb/s |
It uses an LGA1155 socket for Intel processors.
The board has two DDR3 DIMM slots that together support up to 16 GB of memory.
It provides one PCI Express x16 slot (PCIe 3.0) and three PCI Express x1 slots (PCIe 2.0).
