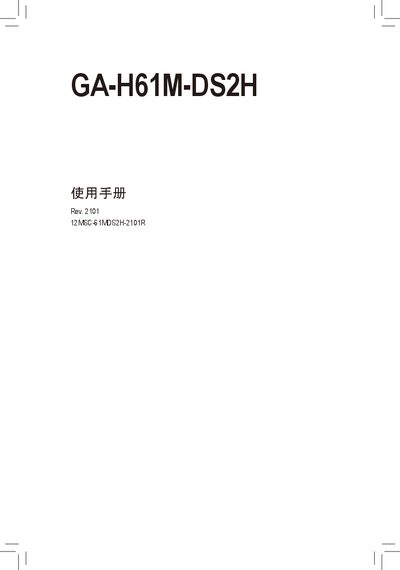

GA-H61M-DS2H is a Gigabyte motherboard with features such as CPU installation, memory module installation, and interface card installation. The document also provides motherboard configuration diagram and function block diagram.
This manual guides users through installing the GA-H61M-DS2H motherboard, including safety precautions, CPU and memory installation, and connecting peripherals. Detailed diagrams show the layout of connectors, slots, and power headers.
It also includes BIOS configuration instructions, driver installation steps, and a full list of technical specifications such as supported processors, memory types, and expansion slots. Warranty and service information are provided at the end of the document. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| SATA Ports | 4 × SATA 3 Gb/s |
| Power Connectors | 24‑pin ATX main, 4‑pin ATX 12 V |
It supports LGA1155 socket processors.
The board has two DDR3 DIMM slots that can hold up to 16 GB of memory.
