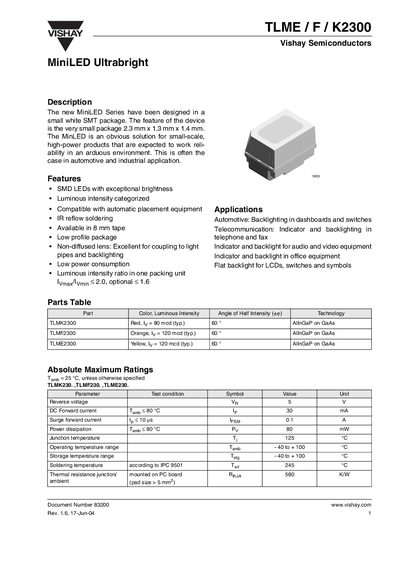

The document describes the features and characteristics of the VISHAY TLME / F / K2300 MiniLED Ultrabright series. The product is designed in a small white SMT package with dimensions of 2.3 mm x 1.3 mm x 1.4 mm. It is suitable for automotive and industrial applications, and offers exceptional brightness, low power consumption, and compatibility with automatic placement equipment.
The TLME/F/K2300 series are MiniLED devices offered by Vishay in a compact 2.3 mm × 1.3 mm × 1.4 mm SMT package. They are intended for high‑power, small‑scale applications such as automotive dashboards, telecommunication indicators, and backlighting for audio‑video and office equipment.
The handbook contains detailed optical and electrical parameters, absolute maximum ratings, mechanical drawings, and recommended soldering and cleaning procedures. It also includes an ozone‑depleting substances policy confirming the devices are free of ODS.
| Package size | 2.3 mm × 1.3 mm × 1.4 mm |
|---|---|
| Luminous intensity (Red) | 80 mcd typ. |
| Forward voltage (typ.) | 1.9 V (Red), 2.0 V (Orange/Yellow) |
| Reverse voltage | 5 V |
| Power dissipation | 80 mW |
| Operating temperature range | -40 °C to +100 °C |
A solder paste with SN 63 % and Pb 37 % (melting temperature 178 °C to 192 °C) is recommended.
They must be stored for no more than one year at a maximum of 30 °C and 60 % relative humidity.
Yes, Vishay Semiconductor GmbH certifies that the semiconductors contain no ozone‑depleting substances.
The soldering iron temperature should be kept below 300 °C.
