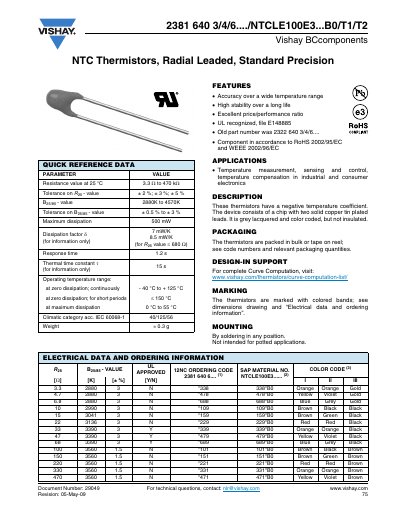

This document is a technical document about the NTC thermistor NTCLE100E3.B0/T1/T2 from Vishay BCcomponents. The product features accuracy over a wide temperature range, high stability over a long life, and excellent price/performance ratio. It is suitable for temperature measurement, sensing and control, and temperature compensation in industrial and consumer electronics.
The Vishay NTCLE100E3 series are radial leaded NTC thermistors with standard precision. They feature a wide temperature range, high stability, and UL recognition. The devices are supplied in bulk or tape on reel and are marked with colored bands for easy identification.
The datasheet provides detailed electrical characteristics, including resistance values from 3.3 Ω to 470 kΩ at 25 °C, tolerance options, B‑value ranges, maximum dissipation, and operating temperature limits. It also includes formulas for calculating resistance at intermediate temperatures and extensive tables of resistance versus temperature for various part numbers. This manual is written in Chinese.
| Resistance at 25 °C | 3.3 Ω to 470 kΩ |
|---|---|
| Tolerance on R25 | ±2 % to ±5 % |
| B‑value (25/85 °C) | 2880 K to 4570 K |
| Maximum dissipation | 500 mW |
| Weight | ≈0.3 g |
The thermistor can dissipate up to 500 mW.
Tolerance on the 25 °C resistance can be ±2 %, ±3 % or ±5 % depending on the part.
They are marked with colored bands as shown in the dimensions drawing.
