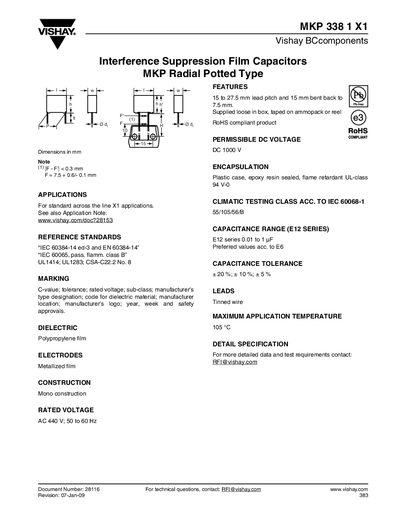

This document is about MKP 338 1 X1 Vishay BCcomponents. It includes detailed information about the product's specifications, dimensions, features, etc.
The MKP 338 1 X1 series are interference‑suppression film capacitors with a polypropylene dielectric and metallized film electrodes. They are offered in radial potted type packages for standard across‑the‑line X1 applications up to 440 V AC.
The handbook lists electrical ratings, mechanical dimensions, packaging options, safety approvals, and mounting recommendations, along with characteristic curves for capacitance, loss angle, and impedance.
| Rated AC voltage | 440 V |
|---|---|
| Permissible DC voltage | 1000 V |
| Maximum application temperature | 105 °C |
| Capacitance tolerance | +20 % (standard) |
| Lead pitch (standard) | 15 mm (bent back to 7.5 mm) |
| Dielectric material | Polypropylene film |
| Packaging | Loose in box, taped on amp pack or reel |
The capacitor is rated for 440 V AC at 50‑60 Hz.
It can withstand a permissible DC voltage of 1000 V.
The capacitor may be used up to 105 °C.
They are supplied loose in a box, taped on an amp pack, or on a reel.
