This file is about the specification of vishay bccomponents interference suppression film capacitor mkp 3381 x1

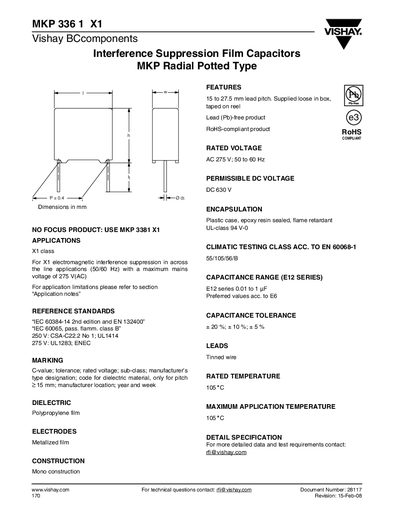

The MKP 336 1 X1 is a radial potted interference suppression film capacitor from Vishay BCcomponents, intended for X1 electromagnetic interference suppression in across‑the‑line applications (50/60 Hz) with a maximum mains voltage of 275 V AC. It features a polypropylene film dielectric, metallized film electrodes, and a lead pitch ranging from 15 mm to 27.5 mm.
The document includes detailed electrical specifications, mechanical dimensions, mounting instructions, safety approvals (EN132400, UL1414, UL1283, CSA‑C22.2), and inspection requirements such as dimensional tolerances, loss‑angle limits, and flammability tests. It also provides contact information for technical support.
| Rated Voltage (AC) | 275 V |
|---|---|
| Permissible DC Voltage | 630 V |
| Rated Temperature | 105 °C |
| Capacitance Range | 0.01 µF to 1 µF (E12 series) |
| Dielectric Material | Polypropylene film |
| Electrodes | Metallized film |
| Lead Pitch | 15 mm to 27.5 mm |
The capacitor is designed for a maximum mains voltage of 275 V AC.
The rated temperature limit is 105 °C.
The capacitor uses a polypropylene film dielectric.
