TEMT7000X01 is a high speed silicon NPN epitaxial planar phototransistor in a miniature 0805 package for surface mounting on printed boards. The device is sensitive to visible and near infrared radiation.
The TEMT7000X01 is a high‑speed silicon NPN epitaxial planar phototransistor offered in a miniature 0805 surface‑mount package. It is sensitive to visible and near‑infrared radiation and is qualified for automotive applications.

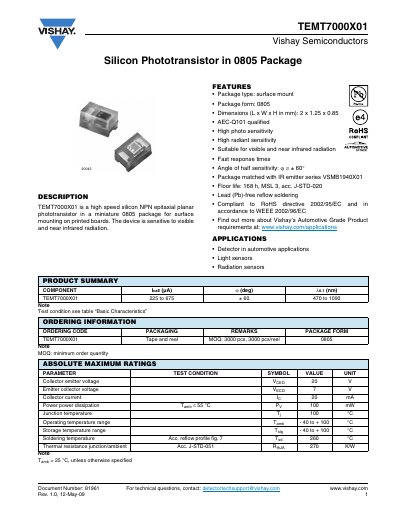

The document provides detailed specifications, ordering information, packaging dimensions, and handling guidelines such as floor life and moisture‑sensitivity handling.
| Package type | surface mount |
|---|---|
| Package form | 0805 |
| Package dimensions (L×W×H) | 2 × 1.25 × 0.85 mm |
| Collector‑emitter voltage (VCEO) | 20 V |
| Collector current (IC) | 20 mA |
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Peak sensitivity wavelength (λp) | 850 nm |
| Spectral bandwidth (λ0.1) | 470 nm to 1090 nm |
| Angle of half sensitivity | ± 60° |
The maximum collector current is 20 mA.
The floor life is 168 hours under the specified conditions.
The package measures 2 mm × 1.25 mm × 0.85 mm (L × W × H).
