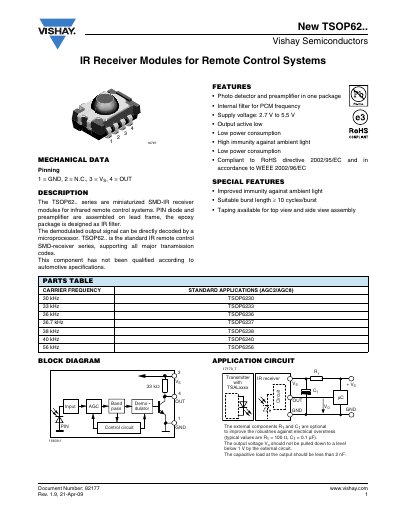

The TSOP62.. series are miniaturized SMD-IR receiver modules for infrared remote control systems. They integrate PIN diode and preamplifier on a lead frame, with the epoxy package designed as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. TSOP62.. is the standard IR remote control SMD-receiver series, supporting all major transmission codes. This component has not been qualified according to automotive specifications.
The TSOP62 series are miniaturized SMD IR receiver modules designed for infrared remote‑control systems. Each device integrates a photodiode and pre‑amplifier in a single package with an internal filter for PCM carrier frequencies.
The document lists electrical and optical characteristics, absolute maximum ratings, mechanical dimensions, recommended soldering processes, packaging details and storage guidelines, helping designers integrate the modules safely and reliably.
