The Z68 Extreme7 Gen3 is an ATX motherboard with Intel® Z68 chipset that supports LGA1155 packaged second generation Intel® CoreTM i7 / i5 / i3 processors, equipped with 8 valve boost CPU power design, supports Intel® Turbo Boost 2.0 technology, support for Intel® K-Series unlocked multiplier processors, and support for Hyper-Threading Hyper-Threading Technology.
The ASRock Z68 Extreme7 Gen3 motherboard supports second‑generation Intel Core i7/i5/i3 processors on an LGA1155 socket, offering up to 32 GB of DDR3 memory across four slots. It features a robust 8‑valve digital power design, solid‑state Japanese capacitors, and a range of connectivity options.

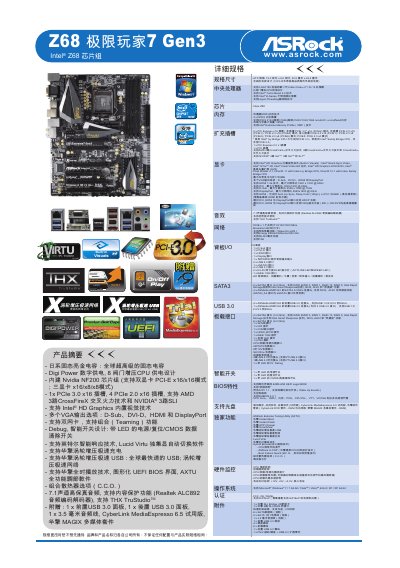

Key interfaces include five PCI‑Express x16 slots (supporting dual‑GPU and triple‑GPU configurations), six USB 3.0 ports, six SATA III ports, dual LAN with teaming, and a variety of audio and video outputs. The board also provides advanced BIOS features, hardware monitoring, and software utilities such as ASRock Extreme Tuning Utility. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| PCI‑Express x16 Slots | 5 (various x16/x8/x8 configurations) |
| USB 3.0 Ports | 6 (2 front, 4 rear) |
| SATA III Ports | 6 |
| Dual LAN | Yes, with teaming support |
The board provides six USB 3.0 ports – two on the front panel and four on the rear I/O.
It supports the LGA1155 socket for second‑generation Intel Core i7, i5, and i3 processors.
Yes, it includes dual LAN ports with teaming capability for increased bandwidth.
The motherboard offers six SATA III (6 Gb/s) ports.
