MLX10402 is a small DC inductive motor driver with features like current limitation, low power consumption, thermal overload protection, and microcontroller compatibility.
The MLX10402 is a motor driver IC designed to drive small DC inductive loads such as motors and lamps. It offers four driving modes (forward, reverse, brake, off) selectable via two digital inputs and includes current limitation, low power consumption, and thermal overload protection.

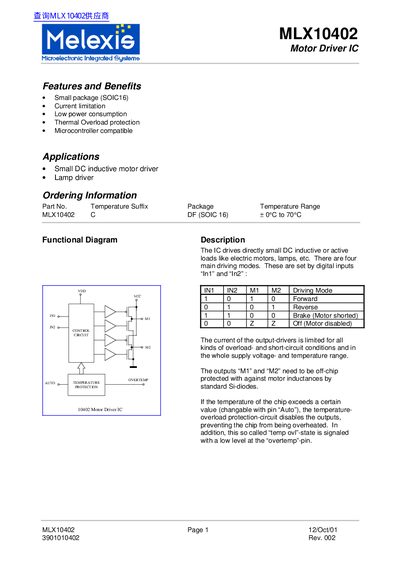

The datasheet provides the pin‑out, typical application circuit, and full electrical specifications, including supply voltage ranges, motor current limits, and absolute maximum ratings. It also describes required off‑chip protection for the output drivers and the behavior of the temperature‑overload circuit.
| Supply voltage VCC | 5 V min – 12 V max (typ 9 V) |
|---|---|
| Supply voltage VDD | 4.5 V min – 5.5 V max (typ 5.0 V) |
| Mean motor current (Vec=9 V) | 330 mA |
| Motor current limit (Vec=9 V) | 550 mA |
| Brake current (Vec=9 V) | 240 mA |
| Maximum output current | 700 mA |
| Absolute maximum voltage (Voc) | +16 V |
| Die temperature limit | +160 °C |
VCC operates from 5 V to 12 V (typical 9 V) and VDD from 4.5 V to 5.5 V (typical 5 V).
