MLX90240 is a discrete micromachined pressure sensor IC suitable for pressure ranges between 0 to 350mBar. It has a compact design, high long term stability and low cost, and is suitable for medical instrumentation, consumer appliances, sports equipment and other fields.
The MLX90240 is a discrete micromachined pressure sensor IC covering a 0‑350 mBar range. It offers a compact design, high long‑term stability, and low cost, making it suitable for medical instrumentation, consumer appliances, sports equipment, and pressure‑difference flow monitoring.

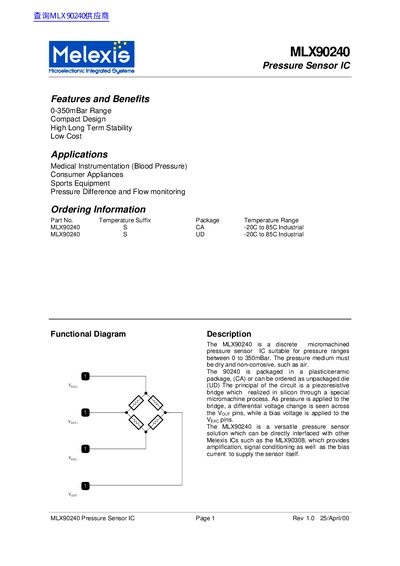

The datasheet lists electrical parameters such as excitation voltage, sensitivity, bridge impedance, and temperature coefficients, as well as mechanical details for the CA (plastic/ceramic) and UD (unpackaged die) packages. Ordering information and contact details for Melexis worldwide are also included.
| Pressure range | 0‑350 mBar |
|---|---|
| Excitation voltage | 0 V – 12 V |
| Typical sensitivity | 58 mV/V/bar |
| Bridge impedance (typical) | 14 kΩ |
| Operating temperature | -20 °C – 85 °C |
| Burst pressure | 5 × FS |
It measures pressures from 0 to 350 mBar.
The sensor is offered in a plastic/ceramic (CA) package or as an unpackaged die (UD).
Typical sensitivity is 58 mV/V per bar.
The device operates from –20 °C to 85 °C.
