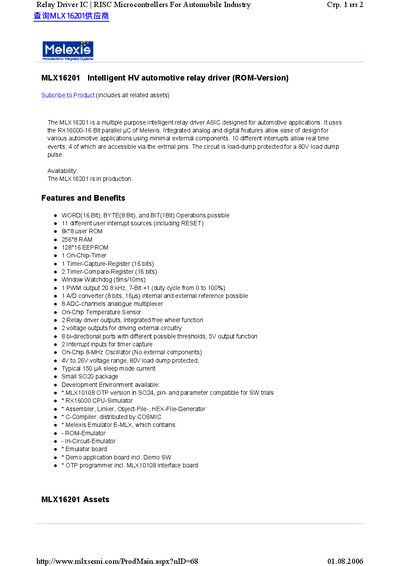

MLX16201 is a multiple purpose intelligent HV automotive relay driver from Melexis. This product features 8K*8 user ROM, 256*8 RAM and 128*16 EEPROM, 8-bit A/D converter, 11 different user interrupt sources, 5ms/10ms window watchdog, 20.8kHz, 7-bit +1 PWM output, on-chip temperature sensor.
The MLX16201 is an intelligent high‑voltage automotive relay driver ASIC that integrates a 16‑bit RX16000 microcontroller, analog and digital functions, and multiple interrupt sources to simplify automotive designs. It supports load‑dump protection up to 80 V and includes on‑chip memory, timers, watchdog, PWM, ADC, temperature sensor, and relay driver outputs.
Development resources include an RX16000 CPU‑simulator, assembler, linker, HEX generator, COSMIC C‑compiler, Melexis emulator (ROM and in‑circuit), emulator board, demo application board, and an OTP programmer for the MLX10108 interface. The device is available in a small SO‑20 package and is currently in production.
| User ROM | 8k × 8 |
|---|---|
| RAM | 256 × 8 |
| EEPROM | 128 × 16 |
| PWM output frequency | 20.8 kHz |
| A/D converter resolution | 8 bits |
| Relay driver outputs | 2 (integrated free‑wheel function) |
| Voltage range | AV to 26 V, 80 V load‑dump protected |
| Package | SO‑20 |
Yes, the MLX16201 is in production.
The device includes one on‑chip timer, a timer‑capture register (16 bits), and two timer‑compare registers (16 bits).
The MLX16201 is supplied in a small SO‑20 package.
