The MLX12101 is a protection circuit for automotive sensors. It features small package, low dropout voltage, large temperature range, low supply current, etc.
The MLX12101 sensor protection IC is designed for automotive applications where 5 V ICs are powered through long wiring harnesses. It provides over‑voltage shutdown when the input exceeds 6.8 V and reverse‑polarity protection to prevent negative supply conditions.

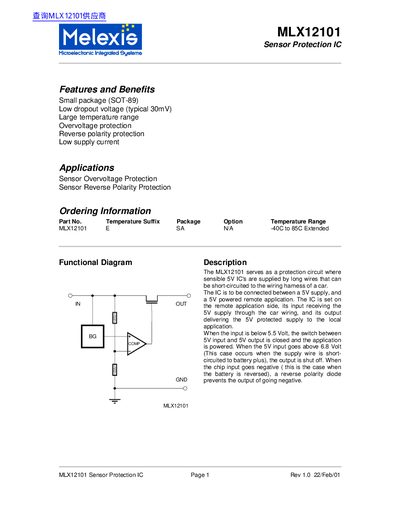

The device is supplied in a small SOT‑89 package, operates from a 5 V supply, and features low dropout voltage, low supply current, and a wide temperature range. Electrical specifications, pinout details, and typical circuit diagrams are included in the handbook.
| Package | SOT‑89 |
|---|---|
| Operating Voltage Range | -14 V to 16 V |
| Supply Current | 0.5 mA |
| Max Output Current | 100 mA |
| Operating Temperature Range | -40 °C to 150 °C |
| Recommended Input Voltage | 4.5 V – 5.5 V |
| Output Current (typ) | 8 mA |
| Switching Voltage | 5.5 V – 6.8 V |
It serves as a protection circuit for 5 V ICs in automotive wiring, providing over‑voltage and reverse‑polarity protection.
The IC is supplied in a small SOT‑89 package.
The maximum supply current is 0.5 mA.
