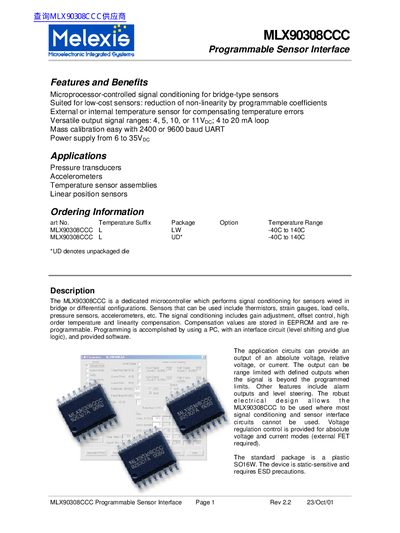

MLX90308CCC is a programmable sensor interface microcontroller, suitable for bridge-type sensors. It features programmable coefficients to reduce non-linearity, compensation for temperature errors with external or internal temperature sensor, versatile output signal ranges, and easy mass calibration.
The MLX90308CCC is a microcontroller‑based signal‑conditioning interface for bridge‑type sensors such as pressure transducers, accelerometers, strain gauges and temperature sensor assemblies. It provides programmable gain, offset, temperature compensation and multiple output options (voltage or 4‑20 mA current) with optional alarm functions.
The document includes electrical specifications, pin descriptions, programming procedures via UART, absolute maximum ratings, and a glossary of terms. It also outlines customization options, ESD precautions and mechanical dimensions of the SO16W package.
| Input voltage range (Vin) | 6 V to 35 V |
|---|---|
| Supply current (Current Mode) | 21 mA |
| Regulated supply voltage (Vrea) | 4.75 V to 5.2 V |
| Output current (Current mode) | 27 mA |
| Operating temperature range | -40 °C to +140 °C |
| ADC/DAC resolution | 10 bit |
| UART baud rate options | 2400 baud or 9600 baud |
The device operates with an input voltage (Vin) from 6 V to 35 V.
It can output 4 V, 5 V, 10 V, or 11 V (voltage) or a 4‑20 mA current loop.
The UART can be set to 2400 baud (TURBO = 0) or 9600 baud (TURBO = 1).
The MLX90308CCC operates from –40 °C up to +140 °C.
