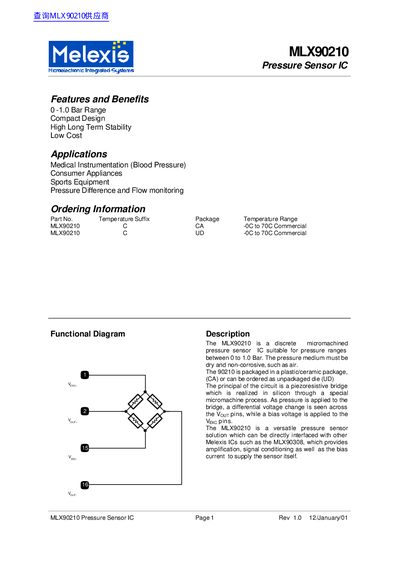

The MLX90210 is a pressure sensor IC from Melexis. It is suitable for pressure ranges between 0 to 1.0 Bar.
The MLX90210 pressure sensor IC provides a 0‑1 Bar measurement range in a compact plastic/ceramic (CA) package or as unpackaged die (UD). It uses a piezoresistive bridge with differential output and requires a bias voltage on the Vexc pins.
The datasheet lists full electrical parameters such as excitation voltage, sensitivity, bridge resistance, and temperature limits, as well as mechanical dimensions and package drawings. Ordering information and worldwide contact details for Melexis sales offices are also included.
| Pressure range | 0 – 1.0 Bar |
|---|---|
| Excitation voltage | 0 V – 12 V (typical 5 V) |
| Zero pressure offset | -30 mV – +30 mV |
| Sensitivity | 8 – 30 mV/V·Bar |
| Bridge resistance | 12 kΩ – 16 kΩ |
| Burst pressure | 2 Bar |
| Operating temperature | -0 °C – 70 °C (commercial) |
| Storage temperature | -55 °C – 150 °C |
| Membrane size | 0.81 mm × 0.81 mm |
| Chip thickness | 0.61 mm |
| Chip size | 1.90 mm × 1.90 mm |
It measures pressures from 0 to 1.0 Bar.
A typical excitation voltage is 5 V, with a permissible range of 0 V to 12 V.
The device operates from –0 °C to 70 °C in commercial grade.
It is offered in a plastic/ceramic (CA) package or as an unpackaged die (UD).
