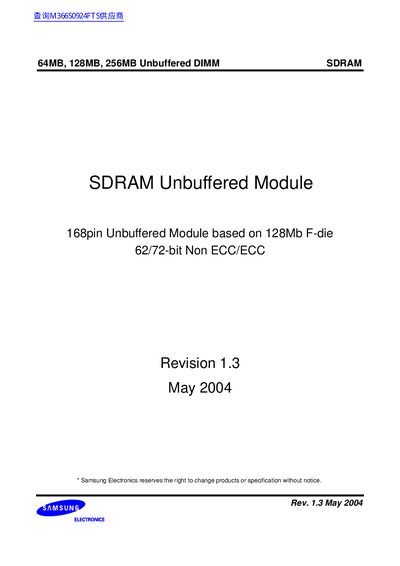

M366S0924FTS is a 64MB SDRAM unbuffered DIMM based on 128Mb F-die. It supports 62/72-bit non ECC and ECC.
This handbook provides an overview of Samsung's unbuffered DIMM SDRAM modules, covering capacities of 64 MB, 128 MB and 256 MB, pin count, voltage requirements and ECC options. It includes revision history, ordering part numbers, operating frequencies and key features such as burst mode and self‑refresh.
Technical sections describe pin configurations for both front and back sides, detailed pin function tables, functional block diagrams for each module variant, and mechanical package dimensions. The document ends with dimensional tolerances and part numbers for the 16 Mx8 SDRAM devices used.
| Memory capacities | 64 MB, 128 MB, 256 MB |
|---|---|
| Pin count | 168 pins |
| Maximum clock frequency | 183 MHz (CL3) / 100 MHz (CL2) |
| Supply voltage | 3.3 V + 0.3 V |
| ECC support | 62‑bit Non‑ECC / 72‑bit ECC |
| Part number for 64 MB module | M366S0924FTS-C7A |
The modules are offered in 64 MB, 128 MB and 256 MB capacities.
The maximum clock frequency is 183 MHz for CL3 timing and 100 MHz for CL2 timing.
The module operates from a single 3.3 V supply plus a 0.3 V auxiliary voltage.
Examples include M366S1723FTS-C7A, M366S1723FTU-C7A, M374S1723FTS-C7A and M374S1723FTU-C7A.
