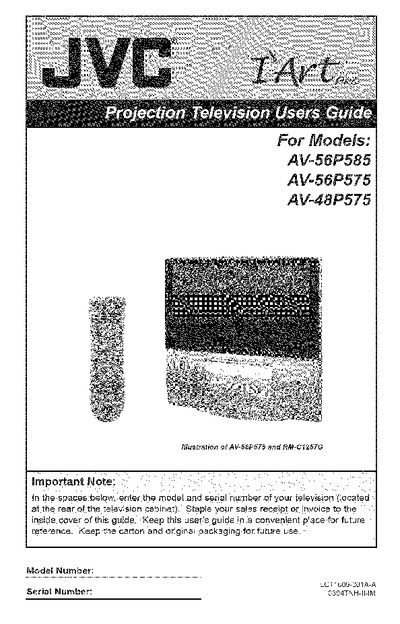

This document is the AV-56P585 AV-56P575 AV-48P575 user manual, which introduces the product's features and characteristics, including model, appearance, and functions.
This manual covers important safety precautions, proper installation, and wiring for the JVC rear‑projection TV models AV-56P585, AV-56P575 and AV-48P575. It explains how to unpack, connect antennas and audio/video devices, and use the remote control and on‑screen menus.
Additional sections describe picture and sound adjustments, troubleshooting common issues, and detailed specifications such as screen size, power consumption, and dimensions. The guide also includes warranty information and authorized service center contacts.
| Type | Rear Projection Television |
|---|---|
| Screen Size | 56 inch / 142 ern measured diagonally, 15:9 ratio |
| Power Source | AC 120V, 60 Hz |
| Speakers | 12cm round X2 |
| Audio Output | Full Range - 10W + 10W |
| Antenna Terminal | 75 ohms (VHF/UHF)(F-type connectar) |
| Dimensions (W x H x D) | 120 x 118.9 x 62.2 |
The TV operates on AC 120 V, 60 Hz and consumes about 24 W of power.
