This document is a datasheet for product specifications, providing information about the product without guaranteeing any mistakes or omissions. The application circuits shown in the document are only for representative usages and do not grant any rights, including industrial rights.

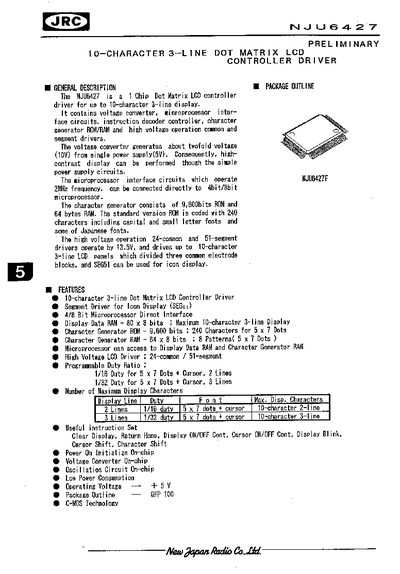

The NJUG427 is a single-chip dot matrix LCD controller and driver designed for up to 10-character by 3-line displays. It integrates essential functions including a voltage converter, microprocessor interface circuits, an instruction decoder, a character generator with ROM/RAM, and high-voltage common and segment drivers.
| Display Capacity | 10-character 3-line |
|---|---|
| Operating Voltage | +5V |
| Package Type | QFP 100 |
| Character Generator ROM | 9,600 bits |
| Display Data RAM | 80 x 8 bits |
The NJUG427 drives up to a 10-character, 3-line display.
The CG RAM can store 8 kinds of character patterns.
