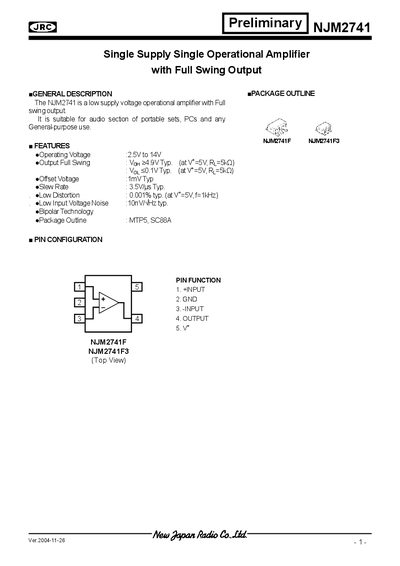

NJM2741 is a low supply voltage operational amplifier with Full swing output, suitable for audio section of portable sets, PCs and any General-purpose use.
The document describes the NJM2741 as a low supply voltage operational amplifier with full swing output, suitable for audio sections in portable sets, PCs, and general-purpose use. It features bipolar technology and operates on a supply voltage ranging from 2.5V to 14V.
| Operating Voltage Range | 2.5V to 14V |
|---|---|
| Output Full Swing (Typical) | ±4.9V |
| Input Offset Voltage (Typical) | 1mV |
| Slew Rate (Typical) | 3.5V/us |
| Total Harmonic Distortion (Typical) | 0.001% |
| Operating Temperature Range | -40 to +85 °C |
The document lists MTP5 and SC88A as the available package outlines.
The device operates with a supply voltage between 2.5V and 14V.
The typical output voltage is less than 0.1V when powered by 5V with a 5kΩ load.
The unit operates from -40°C to +85°C.
