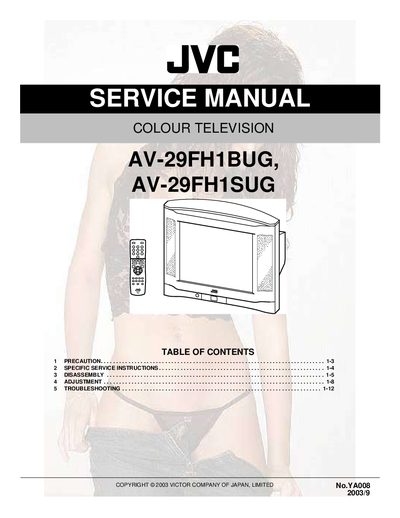

This document is the service manual for the AV-29FH1BUG and AV-29FH1SUG color televisions by JVC in 2003. The manual includes precautions, specific service instructions, disassembly procedures, adjustment methods, and troubleshooting.
This service manual provides detailed information for servicing JVC AV-29FH1BUG and AV-29FH1SUG colour televisions. It includes specifications, safety precautions, disassembly procedures, component replacement, adjustment steps and service menu operation.
The document also lists technical data such as dimensions, power consumption, audio output and remote control details, and offers guidance for safe handling of high‑voltage circuits and proper use of service tools.
| Dimensions (WxHxD) | 81.2cm x 60.1cm x 52.2cm |
|---|---|
| Mass | 40kg |
| TV RF System | CCIR (B/G, D/K, b, L/L’) |
| Colour System | PAL / SECAM / NTSC (Only in EXT mode) |
| Stereo System | A2 (B/G, D/K) / NICAM (B/G, I, D/K, L) |
| Power Input | AC220V ~ AC240V, 50Hz |
| Power Consumption | 84W (standby 3W) |
| Audio Power Output | 7W + 7W |
| Picture Tube Visible Size | 68cm (measured diagonally) |
| Remote Control Unit | RM-C1514B (AAA/ROS dry battery x 2) / RM-C1514 (AAA/ROS dry battery x 2) |
Only qualified personnel should service the TV, using identical replacement parts and never altering the design. Avoid shorting live, neutral or earth grounds, and follow isolation checks before powering the unit.
Unplug the power cord, remove the eight screws labeled [A], then remove the single screw [B] and pull the rear cover toward you.
The TV operates on AC220‑240 V at 50 Hz and consumes 84 W in use, with a standby power of 3 W.
