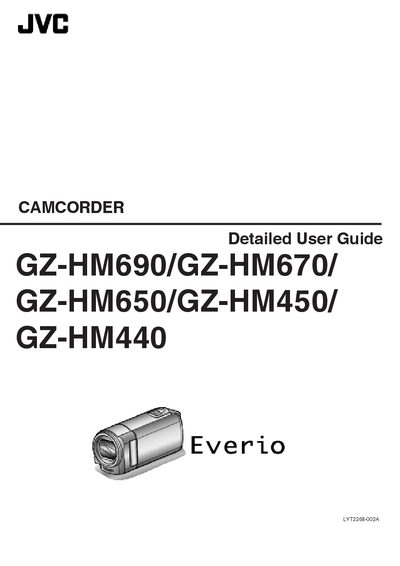

This document is a detailed user guide for CAMCORDER LYT2268-002A, providing information about the features and characteristics of models such as GZ-HM690/GZ-HM670/GZ-HM650/GZ-HM450/GZ-HM440.
This guide covers everything you need to start using the JVC GZ‑HM series camcorders, from verifying accessories and charging the battery pack (including overseas charging) to inserting SD cards, adjusting the touch screen, and setting the clock and language. It also explains key features, model differences, grip adjustment, and optional accessories.
Later sections describe the various recording modes (intelligent auto, manual, time‑lapse, face‑recognition, animation effects), playback options, editing functions (deleting, protecting, trimming, uploading to YouTube), and how to connect the camcorder to a TV via HDMI, component or AV connectors. The final specifications list connectors, power requirements, dimensions, battery capacity, video/audio formats, and still‑image details.
| HDMI output | HDMI™ mini connector |
|---|---|
| Power supply | AC 110 V‑240 V, 50/60 Hz |
| Output voltage | DC 5.2 V, 1 A |
| Dimensions | 66 mm × 28 mm × 47 mm |
| Battery capacity | 1400 mAh |
| Video recording format | AVCHD (AVC/H.264) |
| Maximum video resolution | 1920 × 1080 pixels |
| Audio format | Dolby Digital 2‑ch |
| Still image format | JPEG |
Use the JVC AC adapter, which supports voltages from 100 V to 240 V, allowing you to charge the battery pack anywhere in the world.
The camcorder provides an HDMI™ mini connector, a component output connector, and an AV output connector for video.
Open the SD‑card slot as shown in the guide and insert the card; the procedure is described under "Inserting an SD Card" for each model.
The camcorder measures 66 mm × 28 mm × 47 mm (width × height × depth).
