This manual is a service manual for XV-N30BK[MK2], XV-N33SL[MK2], including important safety precautions, disassembly method, adjustment method and description of major ICs.

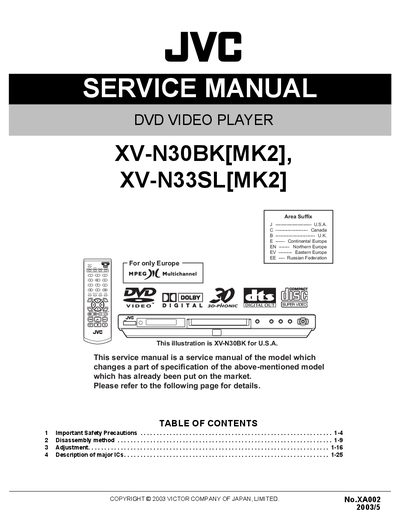

![JVC XV-N30BK[MK2] XV-N33SL[MK2] Service Manual - cover page](/uploads/covers/fc/fcf61574502980a9e88d9f3589b496d5.jpg)
This service manual provides detailed information for the JVC XV‑N30BK[MK2] and XV‑N33SL[MK2] DVD video players. It includes specifications, safety precautions, handling of the laser pickup, and step‑by‑step disassembly and adjustment procedures for qualified service personnel.
The document also lists required replacement parts, fuse specifications, and guidelines for preventing electrostatic damage during repairs. All instructions are intended for use by authorized technicians to ensure safe and reliable service of the devices.
| Readable discs | DVD VIDEO, DVD‑R, DVD‑RW, +RW, SVCD, Video CD, Audio CD, MP3 format, CD‑R/RW |
|---|---|
| Video format | NTSC |
| Power requirements | AC 120 V, 60 Hz |
| Power consumption (on) | 10 W |
| Power consumption (standby) | 0.7 W |
| Mass | 2.1 kg (4.7 lb) |
| Dimensions (W × H × D) | 435 mm × 53 mm × 248.4 mm |
| Horizontal resolution | 500 lines or more |
| Audio output (analog) | 2.0 Vrms (10 kΩ) |
| Audio output (digital coaxial) | 0.5 Vp‑p (75 Ω termination) |
| Audio output (digital optical) | -21 dBm to -15 dBm (peak) |
| Dynamic range (24 bit) | More than 100 dB |
| Total harmonic distortion | Less than 0.006 % |
The player operates on AC 120 V, 60 Hz and consumes 10 W when powered on and 0.7 W in standby mode.
Only a fast‑blow type fuse rated 1.6 A/125 V (F901) may be used as a replacement.
