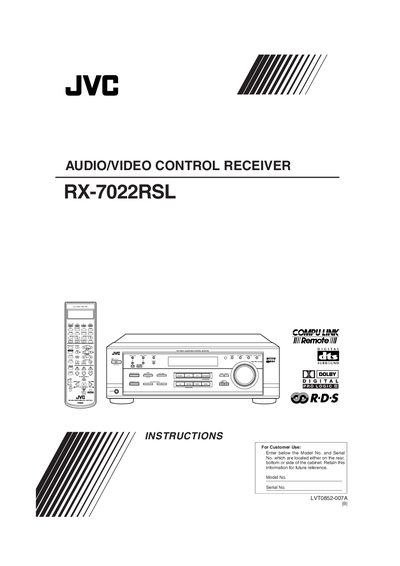

This document is an instruction manual for the LVT0852-007A [B] audio/video control receiver, including setting the master volume control, CD, tape/CDR, DVD, and multi-input functions.
This manual covers safety warnings, proper installation of the mains plug, and handling of the remote control, including battery replacement and polarity matching. It also details how to connect FM/AM antennas, speakers, and other audio/video components, with diagrams and impedance guidelines.
Operating instructions describe turning the unit on, selecting sources, adjusting volume, tone, bass, and surround modes, as well as using the DVD‑MULTI playback mode and RDS features. The final sections list troubleshooting tips and full technical specifications such as tuner ranges, power consumption, and dimensions.
| FM Tuner Tuning Range | 87.50 MHz to 108.00 MHz |
|---|---|
| FM Monaural Sensitivity | 17.0 dBf (1.95 µV/75 Ω) |
| FM Stereo Sensitivity | 41.3 dBf (31.5 µV/75 Ω) |
| FM Stereo Separation (REC OUT) | 73 dB at 85 dBf |
| AM Tuner MW Tuning Range | 522 kHz to 1 629 kHz |
| AM Tuner LW Tuning Range | 144 kHz to 288 kHz |
| Power Requirements | AC 230 V 50 Hz |
| Power Consumption (operation) | 200 W |
| Power Consumption (standby) | 2 W |
| Dimensions (W × H × D) | 435 mm × 146.5 mm × 425.5 mm |
| Mass | 8.8 kg (19.5 lb) |
