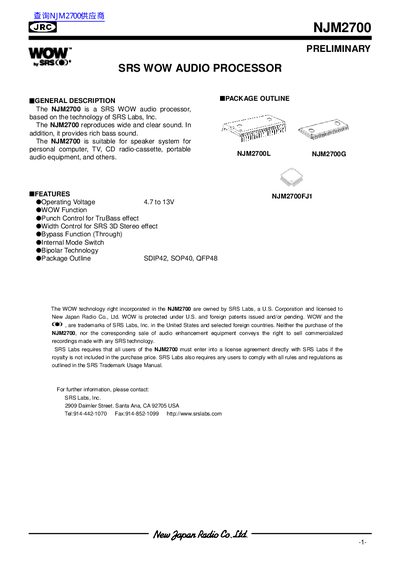

The NJM2700 is a SRS WOW audio processor, which reproduces wide and clear sound and provides rich bass sound. It is suitable for speaker system for personal computer, TV, CD radio-cassette, portable audio equipment, etc.
The NJM2700 audio processor, licensed from SRS Labs, provides wide‑band sound reproduction with enhanced bass (TruBass) and 3‑D stereo (WOW) effects. It is intended for use in personal‑computer, TV, CD, radio‑cassette and portable audio systems.
The device is supplied in three package outlines (SDIP42, SOP40, QFP48) and operates from 4.7 V to 13 V. Key specifications include a supply voltage of up to 15 V, power dissipation up to 700 mW (SOP40) or 450 mW (QFP48), and an operating temperature range of –40 °C to +85 °C.
| Operating Voltage | 4.7 V to 13 V |
|---|---|
| Supply Voltage (SDIP42) | 15 V |
| Power Dissipation (SOP40) | 700 mW |
| Package Outlines | SDIP42, SOP40, QFP48 |
The NJM2700 operates from 4.7 V up to 13 V.
The device is offered in SDIP42, SOP40, and QFP48 packages.
The SOP40 package can dissipate up to 700 mW.
