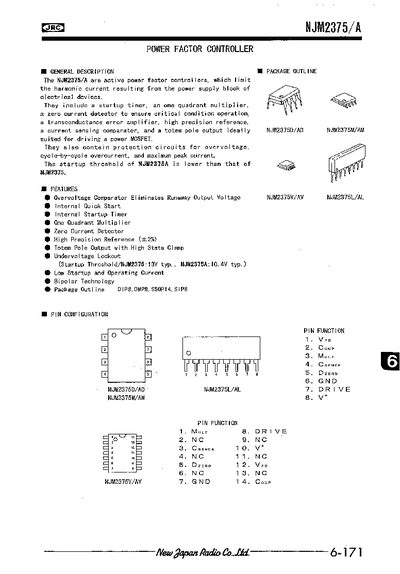

The NJM2375/A is an active power‑factor controller that limits harmonic current in power‑supply blocks. It integrates a startup timer, one‑quadrant multiplier, zero‑current detector, error amplifier, high‑precision reference, current‑sensing comparator and a totem‑pole output for driving power MOSFETs, plus protection for over‑voltage, over‑current and peak‑current conditions.
The document provides detailed electrical characteristics, absolute maximum ratings, pin configuration, typical application circuits and performance graphs, enabling designers to select and implement the device in power‑conversion solutions.
| Startup Threshold (typ.) | 10.4 V |
|---|---|
| Maximum Output Current (Source or Sink) | 500 mA |
| Operating Power Supply Current | 12 mA |
| Total Power Supply and Zener Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The typical startup threshold is 10.4 V (increasing).
The device can source or sink up to 500 mA.
It includes over‑voltage comparator, undervoltage lockout, cycle‑by‑cycle over‑current protection and maximum peak‑current protection.
The device operates from –40 °C to +85 °C.
