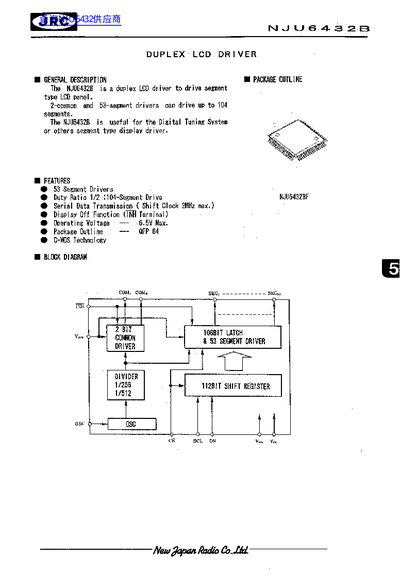

The JRC NJU6432B is a duplex LCD driver designed to drive segment-type LCD panels. It supports both 2-common and 53-segment drivers, allowing it to control up to 104 segments. The device features serial data transmission with a maximum shift clock of 2MHz and includes a display off function controlled by an INH terminal.
| Max Segments Driven | 104 segments |
|---|---|
| Operating Voltage Max | 6.5V |
| Max Shift Clock Frequency | 2MHz |
| Operating Temperature Range | -30 ~ +85 C |
| Supply Voltage Max | 6.5V |
The NJU6432B can drive up to 104 segments using its 2-common and 53-segment drivers.
The maximum operating voltage specified is 6.5V.
