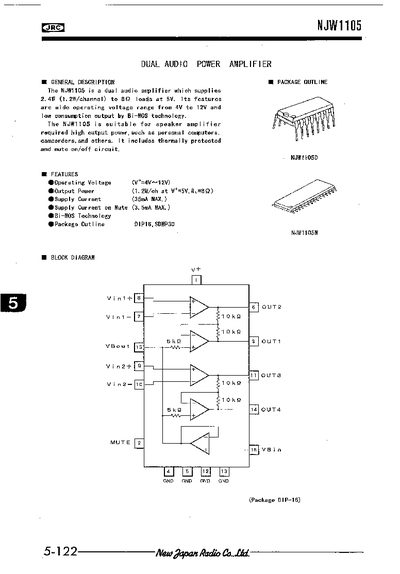

This manual provides the specifications, application circuits etc. of NJW1105
The document describes the NJW1105, a dual audio amplifier designed to supply up to 2.4W (1.2W per channel) into an 8Ω load at 5V. It features Bi-MOS technology for low consumption and includes thermal protection and mute-on/off circuits. The device is suitable for use in personal computers and camcorders.
| Output Power (1.2W/ch) | at Vcc=5V, RL=8Ω |
|---|---|
| Operating Voltage Range | 4V to 12V |
| Supply Current (Max) | 35mA |
| Package Types | DIP16, SDHP30 |
The absolute maximum rating for the supply voltage is 15 V.
It supplies a total of 2.4 W, which is 1.2 W per channel.
The unit operates between -40°C and +85°C.
