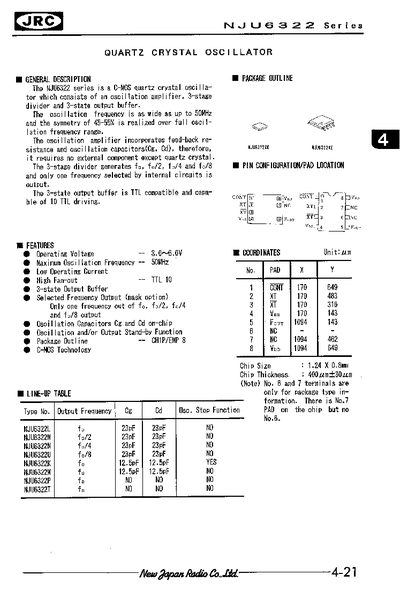

This manual introduces the related information of NJU6322 series products, including product overview, pin definition, electrical characteristics, package form, application circuits and attention points.
The NJU6322 series is a CMOS quartz crystal oscillator that integrates an oscillation amplifier, a 3‑stage divider and a 3‑state TTL‑compatible output buffer. It offers selectable output frequencies of fo, fo/2, fo/4 or fo/8 and operates up to 50 MHz with a symmetry of 45‑55%.
The document lists pin assignments, absolute maximum ratings, electrical characteristics such as supply voltage 0.5‑7.0 V, low operating current, and measurement circuits for signal rise/fall times. A note indicates that only the NJU6322K variant includes an oscillation‑stop function; other variants provide only output standby.
| Operating Voltage | 3.0 V ~ 6.0 V |
|---|---|
| High Fan‑out | TTL 10 |
| Package Size | 1.24 mm × 0.8 mm |
| Supply Voltage Range | 0.5 V ~ 7.0 V |
| Input Current (Low) | ≤ 10 mA |
| Output Current | 25 µA |
| Power Dissipation | 200 µW |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Storage Temperature Range | -65 °C ~ +150 °C |
The device operates from 3.0 V to 6.0 V.
One frequency can be selected from fo, fo/2, fo/4, or fo/8.
Only the NJU6322K variant includes an oscillation‑stop function; other variants have only output standby.
