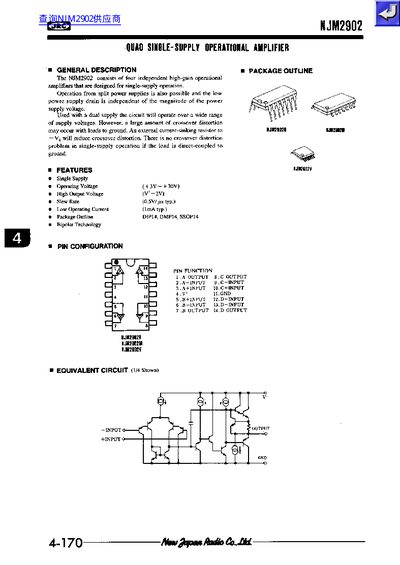

The NJM2902 is a quad single-supply operational amplifier consisting of four independent high-gain amplifiers designed for operation from split or single power supplies. It utilizes bipolar technology to provide low power supply drain that remains independent of the magnitude of the power supply voltage.
This document provides absolute maximum ratings, electrical characteristics, and typical performance curves. Key specifications include an operating voltage range of +3V to +30V, a slew rate of 0.5 V/µs (typical), and package outlines for DIP14, DMP14, and SSOP14.
| Operating Voltage | +3V ~ +30V |
|---|---|
| Slew Rate | 0.5 V/µs typ. |
| Input Offset Voltage | 2 mV max |
| Operating Temperature Range | -40 ~ +85 C |
| Package Options | DIP14, DMP14, SSOP14 |
The typical operating current is 2 mA.
No, there is no crossover distortion problem if the load is direct-coupled to ground.
