TMS320C1x digital signal processors are products produced by Texas Instruments. This product has excellent performance and has 32-bit ALU/Accumulator, 16×16-Bit Multiplier With a 32-Bit Product, 0 to 16-Bit Barrel Shifter, Eight Input/Output Channels, Dual-Channel Serial Port, Simple Memory and I/O Interface and other features

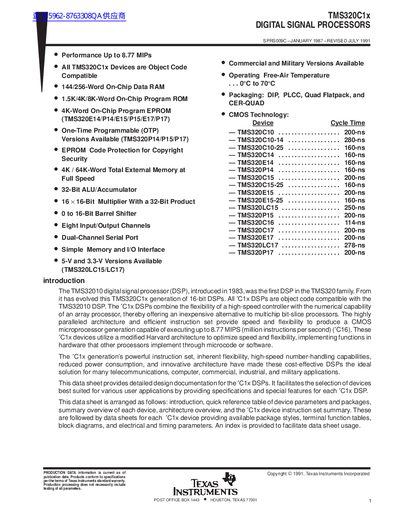

This datasheet describes the TMS320C1x family of 16‑bit digital signal processors, covering device variants such as the C10, C14, C15, C16, C17 and their low‑power versions. It outlines the modified Harvard architecture, on‑chip memory options, instruction set, and peripheral features.
Key sections include a device overview table, detailed architecture description, memory and package options, I/O and serial ports, companding hardware, coprocessor interface, and a comprehensive instruction set summary. The document also contains mechanical package drawings and a legal notice.
| Maximum performance | 8.77 MIPS |
|---|---|
| On‑chip data RAM | 144 or 256 words |
| On‑chip program ROM | 1.5K‑4K‑8K words |
| On‑chip program EPROM | 4K words |
| Operating temperature range | 0°C to 70°C |
| Package options | DIP, PLCC, Quad Flatpack, CER‑QUAD |
| ALU/Accumulator width | 32‑bit |
| Parallel multiplier | 16 × 16‑bit |
| Supply voltage versions | 5 V and 3.3 V |
| External memory support | Up to 64K words |
The devices can achieve up to 8.77 MIPS.
They offer 144 or 256‑word data RAM, 1.5K‑4K‑8K‑word program ROM, and a 4K‑word program EPROM.
The devices are available in DIP, PLCC, Quad Flatpack, and ceramic quad (CER‑QUAD) packages.
Yes, both 5‑V and 3.3‑V versions are offered.
