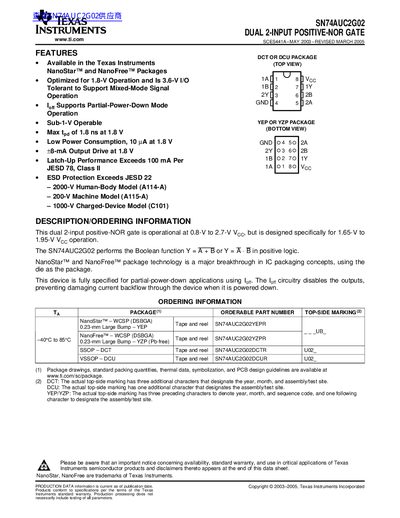

SN74AUC2G02 is a dual 2-input positive-NOR gate, designed for 1.8V operation and capable of supporting mixed-mode signal operation. It features low power consumption, high output drive, over 100mA latch-up performance, and over 2000V ESD protection.
The SN74AUC2G02 performs the Boolean function Y = A+B in positive logic and is designed for operation from 0.8 V to 2.7 V supply voltage. It features low power consumption, sub‑1 V operability, and an output drive of up to 8 mA at 1.8 V.
The device is offered in several package families, including NanoStar™ and NanoFree™ wafer‑level ball grid arrays, as well as DCT, DCU, SSOP, and VSSOP formats. Detailed electrical, switching, and mechanical specifications are provided, along with ordering information and packaging drawings.
| Supply voltage range (recommended) | 0.8 V – 2.7 V |
|---|---|
| Supply voltage range (absolute max) | -0.5 V – 3.6 V |
| Output drive current | 8 mA at 1.8 V |
| Propagation delay (typical) | 1.8 ns at 1.8 V |
| Input clamp current | ‑50 mA |
| Output clamp current | ‑50 mA |
| Continuous output current | 20 mA |
| Storage temperature range | -65 °C – 150 °C |
| Package thermal impedance (DCU) | 227 °C/W |
The device is recommended to operate with a supply voltage between 0.8 V and 2.7 V.
It is offered in NanoStar™ and NanoFree™ wafer‑level ball grid arrays, as well as DCT, DCU, SSOP, and VSSOP packages.
The part can source up to 8 mA at a 1.8 V supply.
