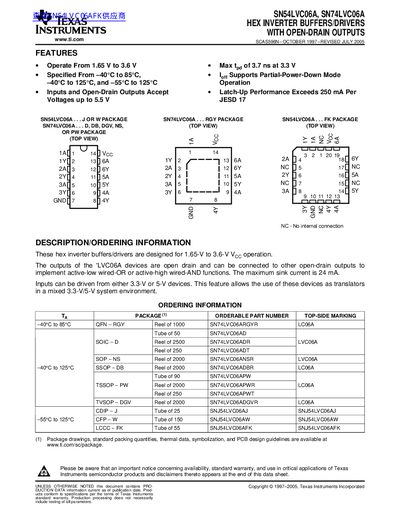

This document describes the SN54LVC06A and SN74LVC06A hex inverter buffers/drivers with open-drain outputs. These devices operate in the voltage range of 1.65V to 3.6V and have fast propagation delay and low power consumption. They can be used as translators in mixed 3.3V/5V system environments.
The SN54LVCO6A and SN74LVCO6A devices are hex inverter buffers/drivers with open‑drain outputs. They operate from 1.65 V to 3.6 V, accept input voltages up to 5.5 V, and can sink up to 24 mA, making them suitable for mixed‑voltage (3.3 V/5 V) systems and wired‑OR/AND functions.
The datasheet provides ordering information for multiple package types (QFN‑RGY, SOIC, SSOP, TSSOP, TVSOP, etc.), electrical and switching characteristics, and mechanical drawings. It also includes TI’s standard warranty notice and RoHS‑compliant “Green” packaging status.
| Operating supply voltage range | 1.65 V to 3.6 V |
|---|---|
| Input voltage range | 0 V to 5.5 V |
| Output voltage range | 0 V to 5.5 V |
| Maximum sink current (open‑drain) | 24 mA |
| Propagation delay (typical) | 3.7 ns at 3.3 V |
| Power dissipation (max) | 500 mW (40 °C to 125 °C) |
| QFN‑RGY package pin count | 14 pins |
The maximum sink current is 24 mA.
They operate from 1.65 V to 3.6 V.
Yes, the packaging information indicates a Green (RoHS & no Sb/Br) status.
