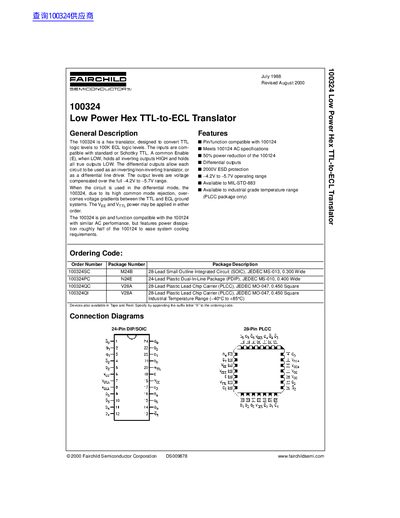

The datasheet provides information about the 100324 low power hex TTL-to-ECL translator.
The 100324 translator converts standard TTL logic levels to ECL levels. It is pin‑compatible with the 100124 device and offers roughly half the power dissipation of its predecessor. The device can operate in differential mode, providing both inverting and non‑inverting outputs with high common‑mode rejection.
The datasheet includes absolute maximum ratings, commercial and industrial operating conditions, electrical characteristics, package dimensions, and a test circuit. It also contains a life‑support policy disclaimer and ordering information for SOIC, PDIP, and PLCC packages.
| Supply Voltage (Vee) | -4.2 V to -5.7 V |
|---|---|
| Output HIGH Voltage (Veg) | -4.2 V to -5.7 V |
| Input Voltage (DC) | -0.5 V to +6.0 V |
| Output HIGH Current (DC) | -50 mA |
| ESD Protection | >2000 V |
| Storage Temperature | -65 °C to +150 °C |
| Maximum Junction Temperature | +150 °C |
| Industrial Temperature Range | -40 °C to +85 °C |
The device operates with a supply voltage (Vee) from –4.2 V to –5.7 V.
It meets an ESD protection rating of greater than 2000 V per MIL‑STD‑883.
The commercial version is rated from 0 °C to +85 °C, while the industrial version operates from –40 °C to +85 °C.
The maximum DC output HIGH current is –50 mA.
