NE5532 is an internally compensated dual low noise OP-AMP. It features internal frequency compensation, slew rate of 8V/µs, input noise voltage of 8nV Hz⁄ (fo = 30Hz), and full power bandwidth of 140KHz. It provides superior performance in high quality amplifiers, control circuits, and telephone applications.

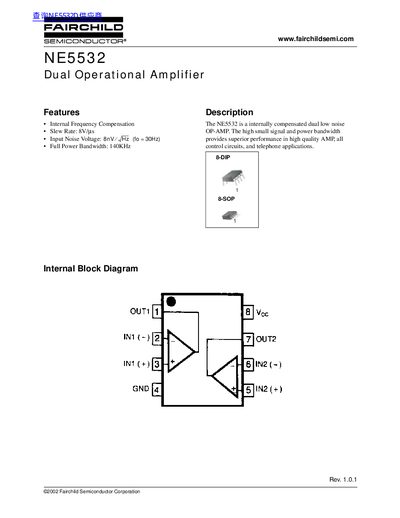

The NE5532 is an internally compensated dual low‑noise operational amplifier designed for high‑quality audio, control circuits, and telephone applications. The datasheet lists its key features such as internal frequency compensation, a slew rate of 8 V/µs, and an input noise voltage of 8 nV/√Hz.
Technical data include absolute maximum ratings, electrical characteristics, typical performance curves, mechanical dimensions for both 8‑DIP and 8‑SOP packages, and ordering information. A life‑support policy disclaimer notes that the device is not authorized for critical life‑support use without explicit approval.
| Power Supply Voltage (VCC) | ±22 V |
|---|---|
| Slew Rate | 8 V/µs |
| Output Voltage Swing | ±12 V |
| Input Offset Voltage | -0.5 mV to 4.0 mV |
| Input Bias Current | 200 nA to 800 nA |
| Operating Temperature Range | 0 °C to +70 °C |
| Package Types | 8‑DIP, 8‑SOP |
The NE5532 can be powered with a supply voltage of up to ±22 V.
The device is offered in 8‑DIP and 8‑SOP surface‑mount packages.
No, the NE5532 is not authorized for use in life‑support devices without written approval from Fairchild Semiconductor.
