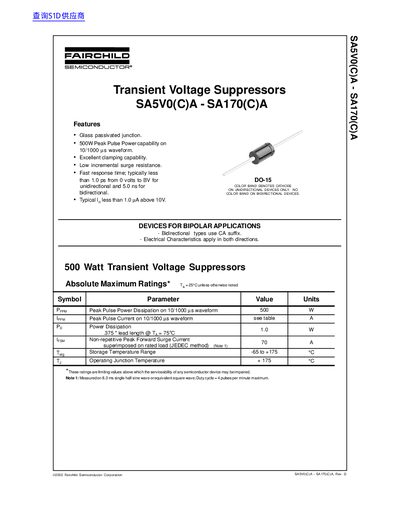

SA5V0(C)A - SA170(C)A series 500 watt transient voltage suppressors
The SA5V0(C)A‑SA170(C)A family provides unidirectional and bidirectional transient voltage suppression for bipolar applications. Features include a glass‑passivated junction, low incremental surge resistance, fast response times (≤1 ps), and typical clamping currents below 1 µA above 10 V.
Maximum ratings specify a peak pulse power dissipation of 500 W on a 10/1000 µs waveform, a storage temperature range of –65 °C to +175 °C, and an operating junction temperature of +175 °C. The devices are not authorized for use as critical components in life‑support systems without written approval from Fairchild Semiconductor.
| Peak Pulse Power Dissipation (10/1000 µs) | 500 W |
|---|---|
| Storage Temperature Range | -65 °C to +175 °C |
| Operating Junction Temperature | +175 °C |
| Non‑repetitive Peak Forward Surge Current | 70 A |
The series is rated for a peak pulse power of 500 W on a 10/1000 µs waveform.
They can be stored from –65 °C up to +175 °C.
No, Fairchild does not authorize their use as critical components in life‑support devices without written approval.
