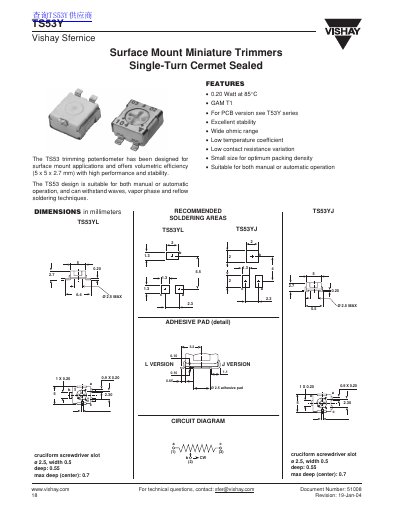

The TS53 trimming potentiometer is designed for surface mount applications and offers high performance and stability. It is suitable for both manual or automatic operation, and can withstand waves, vapor phase and reflow soldering techniques.
The TS53Y trimmer potentiometer is designed for surface‑mount applications, offering a compact 5 × 5 × 2.7 mm package and high stability. It can be used in both manual and automatic assembly processes and tolerates wave, vapor‑phase, and reflow soldering.
Key features include a 0.20 W power rating at 85 °C, resistance values from 10 Ω to 1 MΩ, low temperature coefficient, and environmental ratings from –55 °C to +125 °C. Mechanical travel is 270° ± 10°, with a maximum operating torque of 1.5 N·cm.
| Power Rating | 0.20 W at 85 °C |
|---|---|
| Resistance Range | 10 Ω to 1 MΩ |
| Temperature Coefficient | See Standard Resistance Element Data |
| Mechanical Travel | 270° ± 10° |
| Operating Torque (max) | 1.5 N·cm |
| Temperature Range | –55 °C to +125 °C |
| Insulation Resistance | ≥ 10⁶ MΩ |
| Dielectric Strength | 1000 V RMS |
| Unit Weight | ≤ 0.15 g |
The TS53Y is rated for 0.20 W at 85 °C.
The device offers resistance from 10 Ω up to 1 MΩ.
Vapor‑phase soldering at 215 °C, reflow at 230 °C, do not exceed 260 °C, and iron soldering at 350 °C for 3 seconds.
It can operate from –55 °C up to +125 °C.
