The S592T/S592TR/S592TRW is a low noise gain controlled input stage from Vishay Telefunken, suitable for use in 5V supply UHF and VHF tuners.

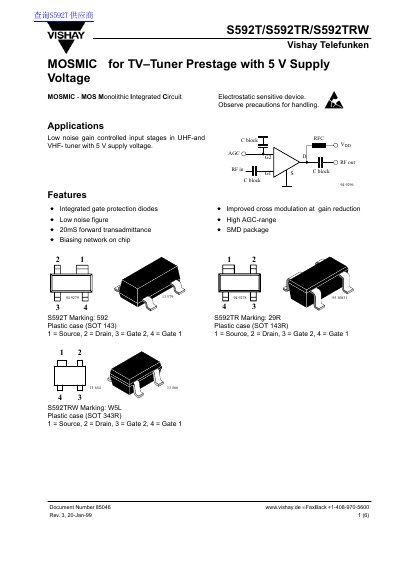

The MOSMIC (MOS Monolithic Integrated Circuit) from Vishay is designed for low‑noise gain‑controlled input stages in UHF/VHF TV‑tuner prestages powered from a 5 V supply. It features integrated gate protection diodes, low noise figure, high AGC range, and is supplied in SOT‑143 plastic packages.
Key specifications include an 8 V drain‑source voltage, 20 mA maximum drain current, 10 V gate‑source breakdown voltage, and a total power dissipation of 160 mW. Physical dimensions for each package variant are listed, and the document also contains Vishay’s ozone‑depleting substances policy.
| Drain‑source voltage (VDS) | 8 V |
|---|---|
| Drain current (ID) | 20 mA |
| Package dimensions (S592T) | 96 × 122 mm |
The MOSMIC is intended for TV‑tuner prestage applications with a 5 V supply voltage.
The S592TR is supplied in a plastic case (SOT‑143R).
The maximum drain current is 20 mA.
