The MLX80001 is a 4 channel physical layer device for applications of low speed vehicle serial data network communication using the Local Interconnect Network (LIN) protocol. The device is designed in accordance to the physical layer definition of the LIN Protocol Specification Package 2.x and the SAE J2602 standard. The IC furthermore can be used in other applications based on the LIN 2.x specification.

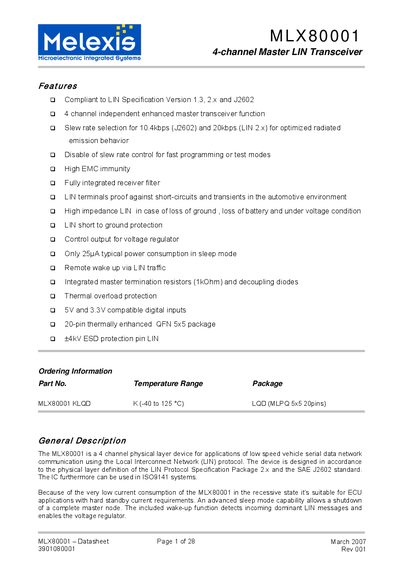

The MLX80001 is a 4‑channel master LIN transceiver designed for automotive low‑speed serial networks. It complies with LIN Specification Version 1.3, 2.x and J2602, offering selectable slew rates, high EMC immunity, and built‑in protection against short‑circuits and transients.
The device operates from 5 V to 26.5 V, consumes only 25 nA in sleep mode, and includes integrated 1 kΩ termination resistors, ESD protection up to 4 kV, and thermal overload protection. It is supplied in a 20‑pin thermally enhanced QFN 5 mm × 5 mm package.
| Supply voltage (Vs) | 7‑18 V |
|---|---|
| Operating temperature | -40 °C to +125 °C |
| Sleep‑mode current | 25 nA typical |
| ESD protection (LIN pin) | 4 kV |
| Package | 20‑pin thermally enhanced QFN 5 mm × 5 mm |
| Integrated termination resistors | 1 kΩ each |
Only 25 nA typical power consumption in sleep mode.
The LIN pin has +4 kV ESD protection.
It operates from –40 °C to +125 °C.
It is supplied in a 20‑pin thermally enhanced QFN 5 mm × 5 mm package.
