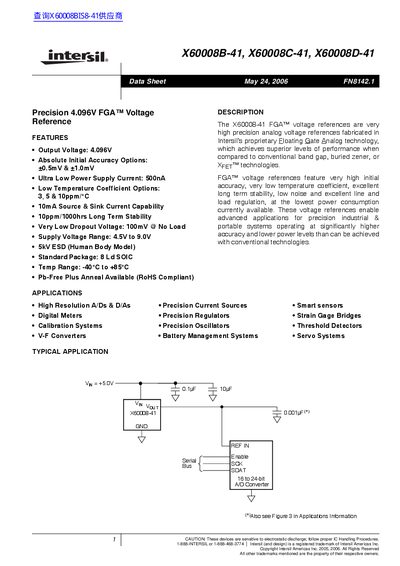

X60008B-41, X60008C-41, X60008D-41 Precision 4.096V FGA™ Voltage Reference offers outstanding long-term stability and very low power consumption.
The X60008 series are high‑precision 4.096 V floating‑gate analog (FGA™) voltage references offered in three variants (B‑41, C‑41, D‑41). They provide very low supply current (500 nA typical) and excellent temperature stability, making them suitable for precision industrial, sensor and calibration applications.
The devices are supplied in an 8‑lead SOIC package, operate from 4.5 V to 9.0 V supply voltage, and are rated for a temperature range of –40 °C to +85 °C. Detailed electrical characteristics, typical performance curves, and application circuits are included in the datasheet.
| Output Voltage | 4.096 V |
|---|---|
| Supply Current (typical) | 500 nA |
| Input Voltage Range | 4.5 V to 9.0 V |
| Temperature Coefficient (B/C) | 3 ppm/°C |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 8‑lead SOIC |
The devices provide a fixed 4.096 V reference output.
Typical supply current is 500 nA.
The parts are rated for –40 °C to +85 °C.
The devices operate from 4.5 V up to 9.0 V.
