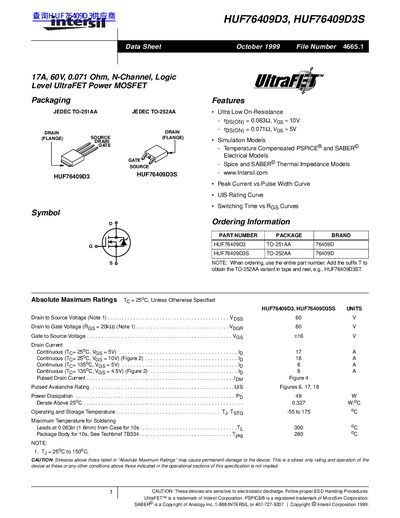

intersil HUF76409D3 HUF76409D3S 17A 60V 0.071 Ohm N-Channel Logic Level UltraFET Power MOSFET Manual

About this manual

The HUF76409D3 (and HUF76409D3S) is a high‑current, low‑on‑resistance N‑channel Power MOSFET designed for logic‑level gate drive. It offers a continuous drain current of 17 A at 25 °C, a breakdown voltage of 60 V, and an on‑resistance as low as 0.063 Ω.

The device is supplied in JEDEC TO‑251AA (HUF76409D3) and TO‑252AA (HUF76409D3S) packages, with detailed thermal, switching, and SPICE models provided. Ordering information, test circuits, and contact details for Intersil are included.

What's inside

• Electrical Specifications
• Thermal Specifications
• Switching Specifications
• Packaging and Ordering Information
• Typical Performance Curves
• Test Circuits and Waveforms
• PSPICE Electrical Model
• SABER Electrical Model
• Thermal Models
• Legal and Contact Information

Frequently asked questions

Which package options are available for the HUF76409D3 series?

The HUF76409D3 is offered in a TO‑251AA package, while the HUF76409D3S variant uses a TO‑252AA package.

What are the recommended operating temperature limits?

The MOSFET is specified for operation from –55 °C to 175 °C.
