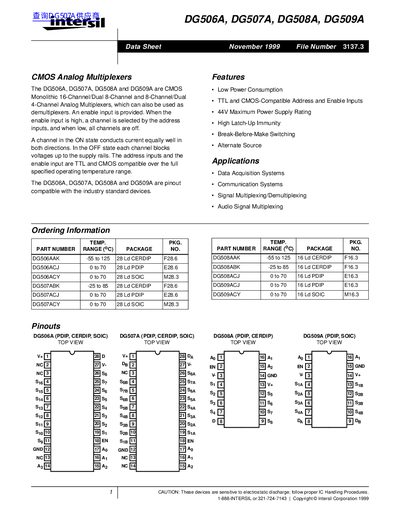

The DG506A, DG507A, DG508A and DG509A are CMOS monolithic 16-Channel/Dual 8-Channel and 8-Channel/Dual 4-Channel Analog Multiplexers, which can also be used as demultiplexers. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off. A channel in the ON state conducts current equally well in both directions. In the OFF state each channel blocks voltages up to the supply rails. The address inputs and the enable input are TTL and CMOS compatible over the full specified operating temperature range. The DG506A, DG507A, DG508A and DG509A are pinout compatible with the industry standard devices.
The DG506A, DG507A, DG508A and DG509A are low‑power CMOS analog multiplexers offered in 16‑channel, dual 8‑channel and 8‑channel/dual‑F configurations. They provide TTL and CMOS compatible address and enable inputs, break‑before‑make switching, and high latch‑up immunity, making them suitable for data acquisition and communication systems.
The document details pinouts for PDIP, CERDIP and SOIC packages, functional diagrams, absolute maximum ratings, electrical specifications, test circuits and package dimensions. It also includes ordering information, thermal data and typical performance curves such as switching time and leakage currents.
| Continuous Current (any terminal) | 30 mA |
|---|
Each terminal can handle up to 30 mA of continuous current.
