1N120BND is a 5.3A, 1200V, NPT series N-Channel IGBT with Anti-Parallel Hyperfast Diode manufactured by Intersil. It is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.

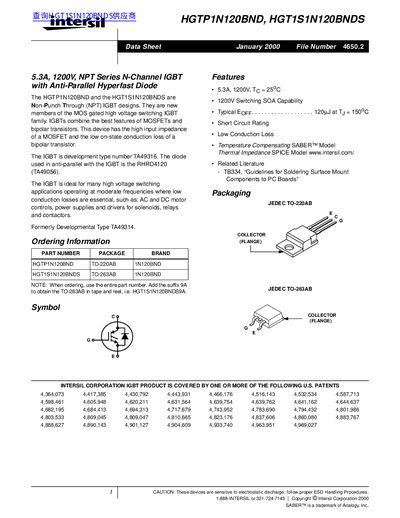

The Intersil HGTP1N120BND (TO‑220AB) and HGT1S1N120BNDS (TO‑263AB) are non‑punch‑through (NPT) N‑Channel IGBTs designed for high‑voltage switching applications such as motor drives and power supplies. They combine MOSFET‑like input impedance with low on‑state conduction loss of bipolar transistors.
The datasheet provides absolute maximum ratings, electrical specifications, typical performance curves, packaging information, and detailed ESD handling precautions. It also includes guidance on operating frequency limits and thermal performance for designers.
| Continuous Collector Current (IC) | 5.3 A |
|---|
Handle the devices with grounded wrist straps, keep leads shorted together, and never insert or remove them from powered circuits.
The typical device’s operating frequency is limited by the smaller of f_yax_i and f_max, based on junction temperature and switching losses.
