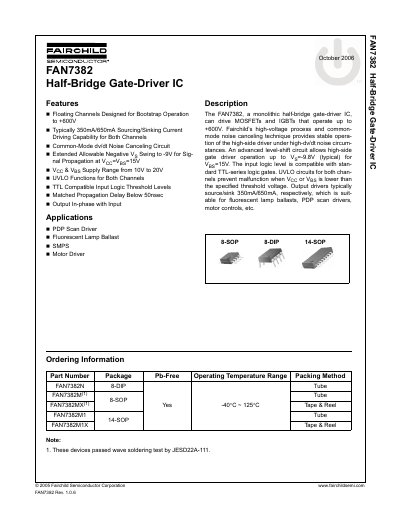

This document describes the FAN7382 half-bridge gate-driver IC's features, including floating channel design, typical 350mA/650mA sourcing/sinking current driving capability, common-mode dv/dt noise canceling circuit, extended allowable negative VS swing to -9V, VCC and VBS supply range from 10V to 20V, TTL compatible input logic threshold levels, matched propagation delay below 50nsec, output in-phase with input applications
The FAN7382 is a monolithic half‑bridge gate‑driver IC capable of driving MOSFETs and IGBTs up to +600 V. It is designed for applications such as fluorescent lamp ballasts, PDP scan drivers and motor control, offering TTL‑compatible inputs and UVLO protection.
The document lists key features, absolute maximum ratings, detailed electrical characteristics, typical application circuits, pin definitions and mechanical dimensions for the 8‑SOP, 8‑DIP and 14‑SOP packages.
| Supply voltage range (VCC & VBS) | 10 V to 20 V |
|---|---|
| Typical source/sink current per channel | 350 mA source / 650 mA sink |
| UVLO function | Enabled for both channels |
| Storage temperature range | -40 °C to 150 °C |
Each channel can typically source 350 mA and sink 650 mA.
The device operates with VCC and VBS between 10 V and 20 V.
Yes, UVLO functions are provided for both the high‑side and low‑side channels.
The part is rated for storage temperatures up to 150 °C.
