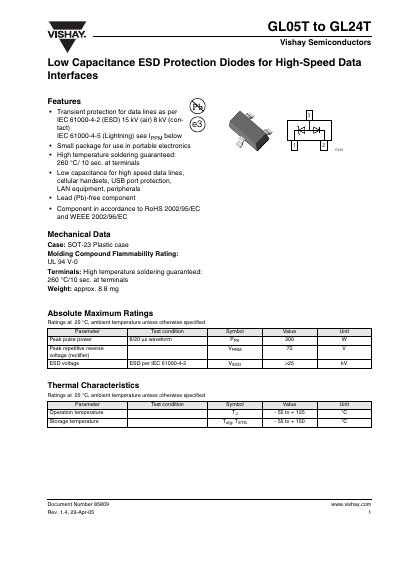

This document introduces the GL05T to GL24T series of low capacitance ESD protection diodes for high-speed data interfaces. The product features transient protection as per IEC 61000-4-2 (ESD) and IEC 61000-4-5 (Lightning), making it suitable for data lines, USB port protection, LAN equipment, etc. It is packaged in a small size for use in portable electronics and complies with RoHS and WEEE standards.
The GL05T‑GL24T series are low‑capacitance ESD protection diodes designed for high‑speed data interfaces such as USB, LAN and cellular handsets. They offer transient protection up to 25 kV (IEC 61000‑4‑2) and meet RoHS and lead‑free requirements.
Key specifications include a SOT‑23 plastic package, peak pulse power of 300 W (8/20 µs), a reverse voltage rating of 70 V, operating temperature from –55 °C to +125 °C, and storage temperature up to +150 °C. The device is compliant with IEC standards and is suitable for portable electronics.
| Peak pulse power | 300 W |
|---|---|
| Peak repetitive reverse voltage (rectifier) | 70 V |
| Operating temperature | -55 to +125 °C |
| Storage temperature | -55 to +150 °C |
| Package type | SOT-23 |
High‑temperature soldering is guaranteed at 260 °C for 10 seconds at the terminals.
Yes, the components are lead‑free and comply with RoHS 2002/95/EC.
